U-Trough Dump Pit

Reliable & Efficient

• Available in 8-inch, 10-inch, 12-inch and 17-inch models.
• Designed for elevator installations.

Standard Features

• Removable sides and ends
• Easy access pit
• U-Trough covers
• Drive-over grates available
• 10-foot long hopper
• Galvanized & painted parts
• Free standing flange rings
• Available with either an open or square discharge

Drive Unit

• Oil enclosed reducer drive with flex-coupling drive shafts.
• Fully adjustable motor mount.
• Self-lubricating split wooden hanger bearings at trough connections.

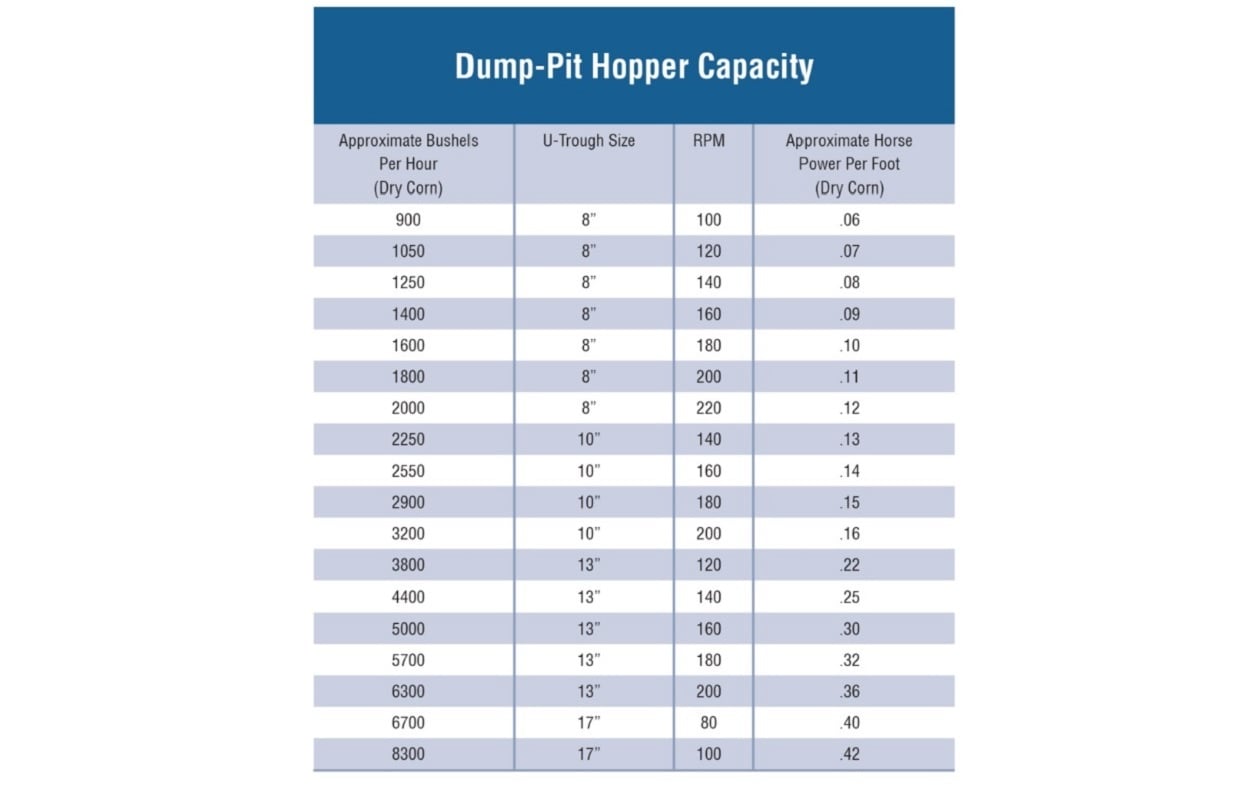

Dump Pit Hopper Capacities

• Removable sides and ends
• Specs shown below based on dry shelled corn. Capacities estimated.
• For high moisture corn or soybeans, use the next larger HP motor.
• Approximate Hopper Holding Capacities:
• 8”: 34 bushels
• 10”: 35 bushels
• 13”: 40 bushels
• 17”: 45 bushels
