10-Inch U-Trough Power Sweep

Simple. Robust. Reliable.

9:1 Reduction Drive –

• Belt Driven
• Adjustable weight configurations to match bin size
• Long life rubber tire
• Deflector plate allows for cleaning close to bin wall
• Optional on 8” models
• Optional on 10” models for 18-foot and 33-foot diameter bins
• Standard on 10-inch models, 36-foot diameter bins and larger

4:1 Reduction Wheel

• Direct gear drive
• Simple construction
• Available for all 8-inch models
• Standard on 10-inch models up to 33-foot diameter bins

Center Wells

• Oversized to prevent plugging
• Simplified maintenance with easy access to all service points
• Gear box shielding is tapered to improve grain flow

Center Well Gearboxes

• All gearboxes are made at NECO
• Internal clutch for ease in engaging
• External oil fill tube for easy access and maintenance
• The tapered gearbox shaft allows for easy alignment of underbin auger

Rack & Pinion

• Heavy duty
• Delivers a robust 2,100 lbs of gate pull
• Easy pull and pin configuration allows for quick control of the unload center hopper and intermediate wells
• Standard of all 10-inch models, optional on 8-inch models

E-Z Off Motor Mount

• No tools required to remove top channel
• Allows motor to be stored off-site or power several systems with the same motor
• Galvanized construction prevents corrosion and rusting
• Meets all mount requirements
• Available for all unload augers up to 30 HP

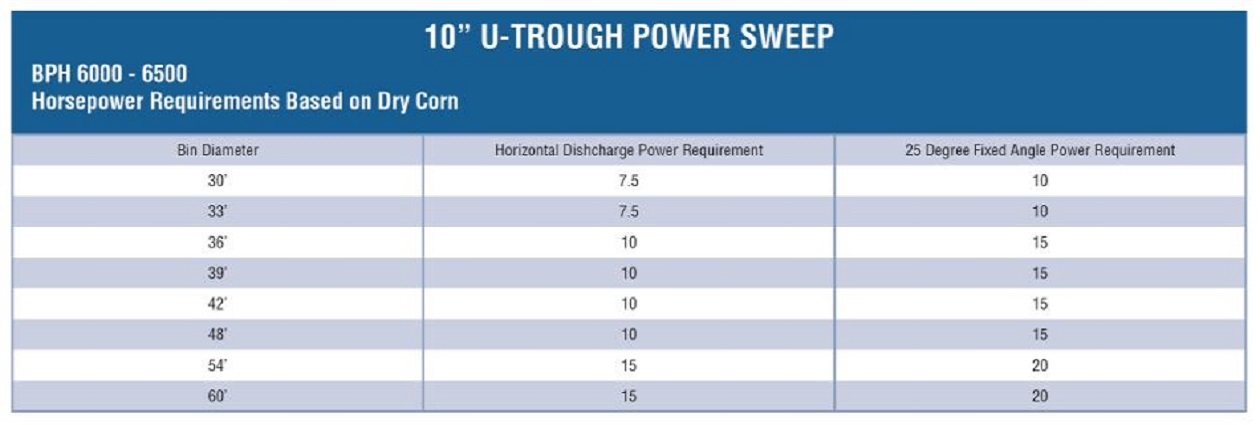

U-Trough Power Sweep

• Radius formed galvanized trough fits under most drying floors as it needs only 12-inches of clearance
• Offered in 10-inch for bin diameters or 30-feet to 60-feet
• Horizontal or 25-degree fixed angle discharge included
